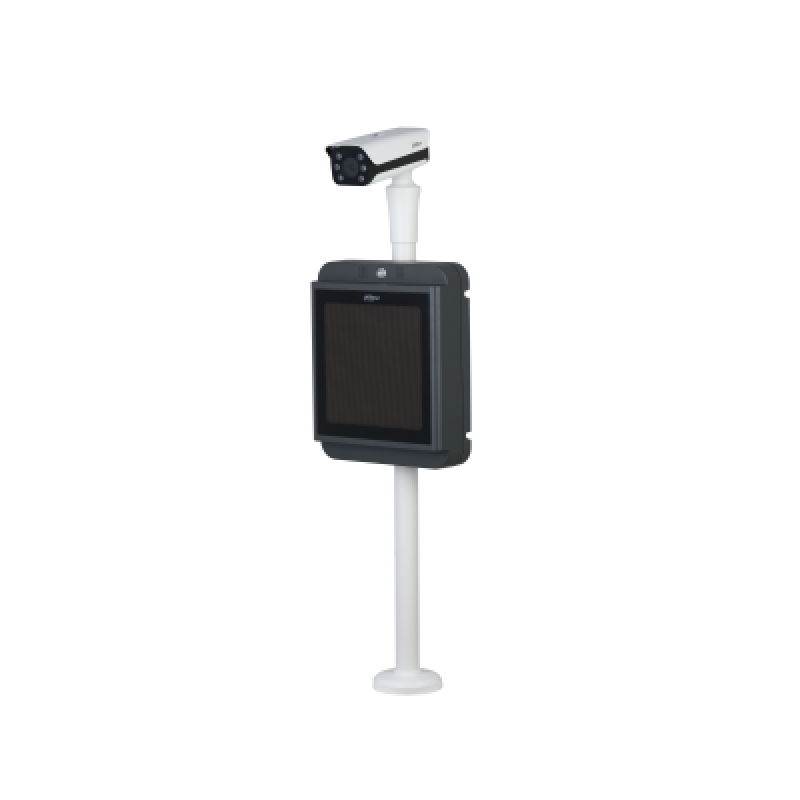

• Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7
• Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more
• Single network port and integration of ANPR camera, LED illuminators, and LED display facilitate installation and deployment
• Information shown on the LED display can be customized
• Supports two-way audio and voice broadcasting, ideal for unattended parking solution
• Steel casing and electrophoresis process bring attractive appearance and allow durable performance
| Dosyalar |
| Dosya bulunamadı! |
| Camera |
| Image Sensor |
1/2,8'' CMOS |
| Electronic Shutter Speed |
1/50–1/10000, automatic or manual |
| Illumination Distance |
12 m (39,37 ft) |
| IR LEDs |
6 |
| Basic |
| Screen Type |
64×64 (4 lines, 8 letters per line, red and green color display) |
| Screen Resolution |
4096 nokta (64 × 64), piksel aralığı: 4,75 mm (0,19'') |
| Lens |
| Lens Type |
F14 |
| Iris Control |
Auto iris (W:1.6–T:3.3) |
| Video Detection and Alarm |
| Trigger Events |
Video detection; I/O choke; video detection and I/O choke |
| Video |
| Compression |
H.264B/H.264M/H.264H/H.265/MJPEG |
| Field of view |
Horizontal: 108.1° (S)–30.3° (T);
Vertical: 56.3° (S)–17.1° (T);
Diagonal: 130.9° (W)–34.8° (T) |
| Frame Rate |
PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps) |
| Resolution |
Main stream: 1080P (1920×1080)/720P (1280×720)
Substream: 720P (1280×720)/D1 (704×576, 704×480)/CIF (352×288, 352×240) |
| Bit Rate |
H.264B: 32Kbps–32768Kbps
H.264M
: 32Kbps–32768Kbps H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps |
| WDR |
96 db |
| Port |
| Alarm Input |
2, optocoupler input (on-off input) |
| Audio Input |
1-channel RCA port |
| Alarm Output |
3 ports. 2-channel optocoupler output, 1-channel relay output, which can be connected to devices such as barriers |
| Audio Output |
1-channel RCA port |
| Storage Battery |
1 built-in TF card port. Kingston supports 16G, 32G, 64G and 128G; Dahua 16G, 32G, 64G and 128G; SanDisk 16G, 32G, 64G and 128G |
| Network |
1 100/1000M Ethernet bağlantı noktası (RJ-45) |
| Alarm Event |
Alarm in case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict and illegal access |
| RS-232 |
1 |
| Video Metadata |
| Vehicle |
Vehicle seizure rate ≥99%
It supports the recognition of vehicle model, vehicle logo, vehicle series, vehicle color, characteristics of the driver and front seat passenger, license plate and license plateless vehicles. License plate recognition rate ≥95% |
| General |
| Power Source |
110V–230V AC |
| Dimension |
431,0 mm × 316,9 mm × 1425,0 mm (16,97'' × 12,48'' × 56,10'') (U × G × Y) |
| Operating Temperature |
–30 °C ila +65 °C (–22 °F ila +149 °F) |
| Installation |
Floor Standing |
| Operating Humidity |
%10RH–%90RH |
| Certifications |
CE, FCC, RoHS |
| Net Weight |
24,0 kg (52,91 lb) |
| Power consumption |
<48W |
| Gross Weight |
43,0 kg (94,80 lb) |
| Interface |
| RS485 |
1 |
| Environmental |
| Ingress Protection |
IP54 |
| Construction |
| Casing |
Metal + Plastic |
| Dimensions |
Display : 304 mm × 304 mm (11,97'' × 11,97'') (G × Y) |
