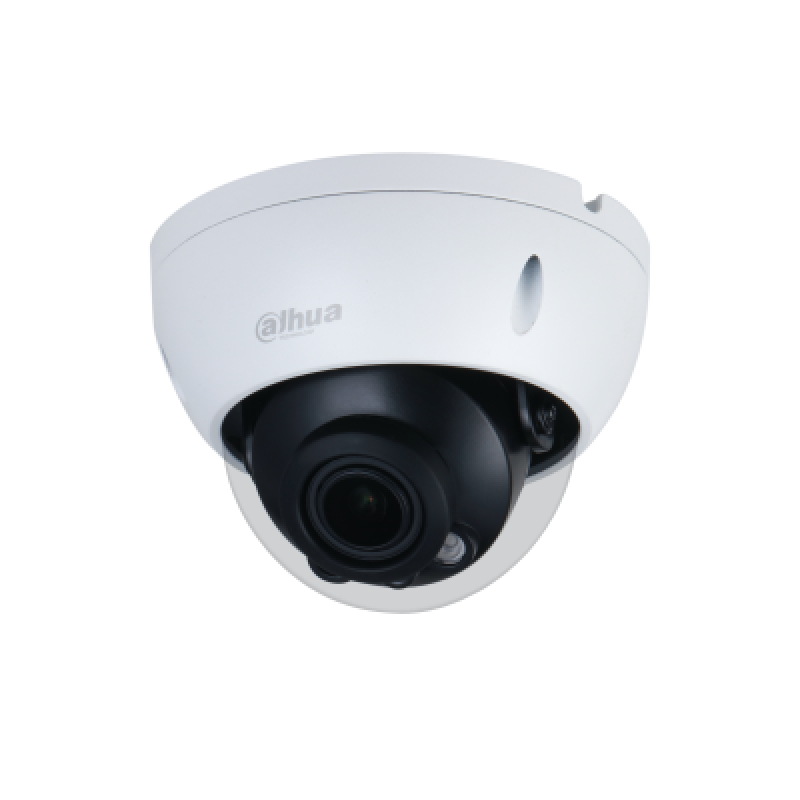

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max. IR distance: 40 m · ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
• Supports max. 256 GB SD card
• 12V DC/PoE power support
• IP67, IK10 protection
| Dosyalar |
| IPC-HDBW1431R-ZS-2812-S4-DataSheet |
Download |
| Camera |
| Image Sensor |
1/3 ”4Megapixel progressive CMOS |
| Effective Pixels |
2688 (H) × 1520 (V) |
| RAM/ROM |
128MB/128MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination |
0.03 Lux @ F1.7 |
| IR Distance |
40m |
| IR On/Off Control |
Auto/ Manual |
| IR LEDs |
2 |
| Lens |
| Lens Type |
Motorized vari-focal |
| Mount Type |
φ14 |
| Focal Length |
2.8 mm–12 mm |
| Max. Aperture |
F1.7 |
| Angle of View |
Horizontal: 98°–31°
Vertical: 55°–18°
Diagonal: 116°–36° |
| Close Focus Distance |
0.8 m (2.6 ft) |
| PTZ |
| Pan/Tilt Range |
Horizontal: 0°–355°
Vertical: 0°–75°
Rotation: 0°–355° |
| Video |
| Compression |
H.265; H.264; H.264B; MJPEG |
| Smart Codec |
Yes |
| Streaming Capability |
2 Streams |
| Frame Rate |
Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps) |
| Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC Mode |
Yes |
| HLC |
Yes |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Auto/Manual |
| WDR |
120 dB |
| Noise Reduction |
3D DNR |
| Region of Interest |
Off / On (4 Zone) |
| Motion Detection |
Off / On (4 Zone, Rectangle) |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Audio |
| Built-in MIC |
Yes |
| Network |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Max. User Access |
20 |
| Edge Storage |
Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Web Viewer |
IE
Chrome
Firefox |
| Management Software |
Smart PSS; DSS; DMSS |
| Smart Phone |
IOS, Android |
| Certifications |
| Certifications |
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B |
| Electrical |
| Power Supply |
12V DC/POE (802.3af) |
| Power Consumption |
< 6.4W |
| Environmental |
| Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than≤95% |
| Strorage Conditions |
-40°C to +60°C (-40°F to +140°F) |
| Ingress Protection |
IP67; IK10 |
| Construction |
| Casing |
Metal |
| Dimensions |
88.9 mm × Φ122 mm (3.5" × Φ4.8") |
| Net Weight |
0.46 kg (1.0 lb) |
| Gross Weight |
0.64 kg (1.4 lb) |
