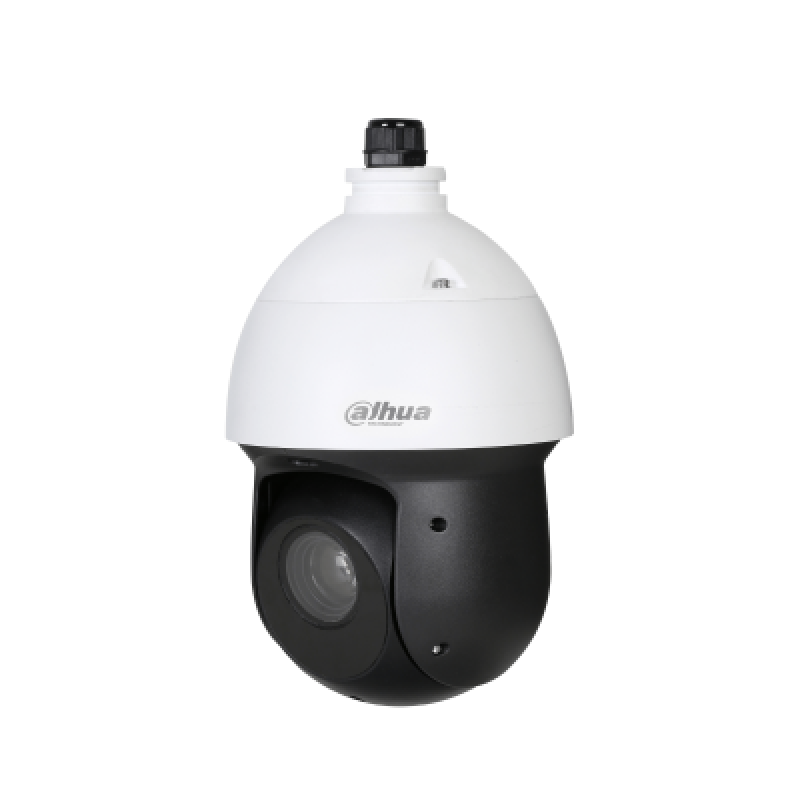

• 1/2.8" 2Megapixel CMOS
• Powerful 25x optical zoom
• Starlight technology
• Perimeter protection
• PoE+
• IP66
• IR distance up to 100m
• SMD PLUS
| Dosyalar |
| SD49225XA-HNR-S2-DataSheet |
Download |
| Camera |
| Image Sensor |
1/2.8" CMOS |
| Effective Pixels |
1920 (H) × 1080 (V) |
| RAM/ROM |
1GB/256MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/1 s–1/30000 s |
| Minimum Illumination |
Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on) |
| S/N Ratio |
≥55 dB |
| IR Distance |
100 m |
| IR On/Off Control |
Zoom Prio; Manual; Smart IR; Off |
| IR LEDs |
6 |
| Lens |
| Focal Length |
4.8 mm–120 mm |
| Max. Aperture |
F1.6–F3.5 |
| Angle of View |
H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9° |
| Focus Control |
Auto; Semi-Auto; Manual |
| Optical Zoom |
25x |
| Close Focus Distance |
0.1 m–1.5 m (0.33 ft–4.92 ft) |
| PTZ |
| Pan/Tilt Range |
Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180° |
| Preset |
300 |
| Power-off Memory |
Yes |
| Tour |
8 (up to 32 presets per tour) |
| Idle Motion |
Preset; Pattern; Tour; Scan |
| Pattern |
5 |
| Scan |
5 |
| Speed Adjustment |
Yes |
| Smart Event |
| IVS |
Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Detection |
Yes |
| SMD PLUS |
Yes |
| Video |
| Compression |
Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) |
| Streaming Capability |
3 Streams |
| Frame Rate |
Main stream: 1080p/1.3 M/720p (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1.3M/720p/D1/CIF (1–25/30 fps) |
| Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 32 Kbps–8192 Kbps |
| Day/Night |
Auto(ICR) / Color / B/W |
| BLC Mode |
Yes |
| HLC |
Yes |
| White Balance |
Auto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp; Natural Light; Street Lamp |
| Gain Control |
Auto / Manual |
| WDR |
120 dB |
| Noise Reduction |
2D; 3D |
| Motion Detection |
Yes |
| Flip |
180° |
| Privacy Masking |
Up to 24 areas, and up to 8 areas in the same view |
| Audio |
| Compression |
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1 |
| Network |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; Qos; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
| Interoperability |
ONVIF (Profile S&G&T); CGI |
| Streaming Method |
Unicast; Multicast |
| Max. User Access |
20 |
| Edge Storage |
Imou Cloud; FTP; Micro SD card (max. 512 GB); NAS |
| Web Viewer |
IE7 and later versions; Chrome; Firefox; Safari |
| Management Software |
Smart PSS; DSS; IVSS; Configtool; NVR; Smart Player; Imou |
| Smart Phone |
IOS, Android |
| Port |
| Alarm Linkage |
Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email |
| Alarm Event |
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection; power exception detection |
| Certifications |
| Certifications |
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1 |
| Electrical |
| Power Supply |
12 VDC/3A±10%
PoE+ (802.3at) |
| Power Consumption |
Basic: 9W
Max.: 23W |
| Interface |
| Video Interface |
Input: 1 channel
Output: 1 channel |
| Alarm |
Input: 2 (on-off value input: 0–5 VDC)
Output : 1 |
| Environmental |
| Operating Conditions |
–40°C to +70°C (–40°F to +158°F) |
| Ingress Protection |
IP66; TVS 6000V lightning proof; surge protection; voltage transient protection |
| Construction |
| Casing |
Aluminum alloy ADC12 |
| Dimensions |
269.9mm × Φ160 mm (11.61" × Φ6.30") |
| Net Weight |
3 kg (6.61 lb) |
| Gross Weight |
4.2 kg (9.26 lb) |
