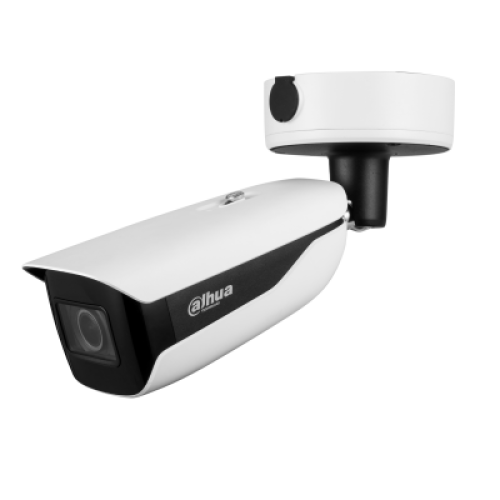

• 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 8 MP (3840 × 2160)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Built-in IR LED, and the max. illumination distance is 60 m.
• With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
• Supports P-Iris, the camera can control the iris more precisely for better image effect.
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict and illegal access.
• Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card.
• 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
• IP67, IK10 protection grade.
• 12 VDC power output, max. current 165 mA , easy for installation
• Anti-corrosion coating(optional).
| Dosyalar |
| IPC-HFW7842H-Z-2712F-DC12AC24V-S2-DataSheet |
Download |
| Camera |
| Image Sensor |
1/1.8" CMOS |
| Effective Pixels |
3840 (H) × 2160 (V) |
| RAM/ROM |
2GB/4GB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
| Minimum Illumination |
0.003 lux@F1.2 (Color, 30 IRE)
0.0003 lux@F1.2 (B/W, 30 IRE)
0 lux (Illuminator on) |
| IR Distance |
60m |
| IR On/Off Control |
Auto/ Manual |
| IR LEDs |
4 |
| Lens |
| Lens Type |
Motorized vari-focal |
| Mount Type |
Module interface |
| Focal Length |
2.7-12 mm |
| Max. Aperture |
F1.2 |
| Angle of View |
Horizontal: 112° (W)–47° (T)
Vertical: 58° (W)–26° (T)
Diagonal: 137° (W)–54° (T) |
| Close Focus Distance |
1 m (3.28 ft) |
| PTZ |
| Pan/Tilt Range |
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° |
| Video |
| Compression |
H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Smart Codec |
Smart H.265+; Smart H.264+ |
| Streaming Capability |
5 streams |
| Frame Rate |
Main Stream: 3840 × 2160 (1–25/30 fps)
Sub stream: 704 × 576 (1–25 fps);704 × 480 (1–30 fps)
Third stream: 1920 × 1080 (1–25/30 fps)
Fourth stream: 1920 × 1080 (1–25/30 fps)
Fifth stream: 704 × 576 (1–25fps);704 × 480 (1–30 fps) |
| Resolution |
8M (3840 × 2160);6M (3072 × 2048); 6M (3072 × 1728);5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 8 kbps–16384 kbps
H.265: 3 kbps–14050 kbps |
| Day/Night |
Auto (ICR)/Color/B/W |
| BLC Mode |
Yes |
| HLC |
Yes |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Auto |
| WDR |
120 dB |
| Noise Reduction |
3D DNR |
| Region of Interest |
4 areas |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror |
Off / On |
| Privacy Masking |
4 areas |
| Smart Illumination |
Yes |
| Audio |
| Compression |
PCM; G.711A; G.711Mu; G.726; G.723 |
| Network |
| Ethernet |
RJ-45 (10/100/1000 Base-T) |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Max. User Access |
20 |
| Edge Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Web Viewer |
IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later |
| Management Software |
Smart PSS; DSS; DMSS |
| Smart Phone |
IOS; Android |
| Certifications |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
UL 50E NEMA Type 4X (optional) |
| Electrical |
| Power Supply |
12 VDC/24 VAC/PoE+ (802.3at) |
| Power Consumption |
Basic power consumption: 5.11 W (12 VDC); 6.82 W (24 VAC); 7.62 W (PoE)
Max. power consumption (Max. stream + intelligent
function + IR LED + focus): 16.8 W (12 VDC); 20.7 W (24 VAC); 21.3 W (PoE)
Heat power consumption: 3.3 W (12 VDC); 5.5 W (24 VAC); 5.5 W (PoE) |
| Interface |
| Video Interface |
İnput: 1 (RCA port) Output: 1 (RCA port) |
| Alarm |
Input: 1 channel 5 mA 3 V–5 VDC Output: 1 channel 1,000 mA 30 VDC/500 mA 50 VDC |
| Environmental |
| Operating Conditions |
–40 °C to +65 °C (–40 °F to +149 °F)/Less than 95% RH |
| Strorage Conditions |
-40°C to +60°C (-40°F to +140°F) |
| Ingress Protection |
IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) |
| Construction |
| Casing |
Metal + Plastic |
| Dimensions |
340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" ×3.66") (L × W × H) |
| Net Weight |
1.58 kg (3.48 lb) |
| Gross Weight |
1.15 kg (2.54 lb) |
