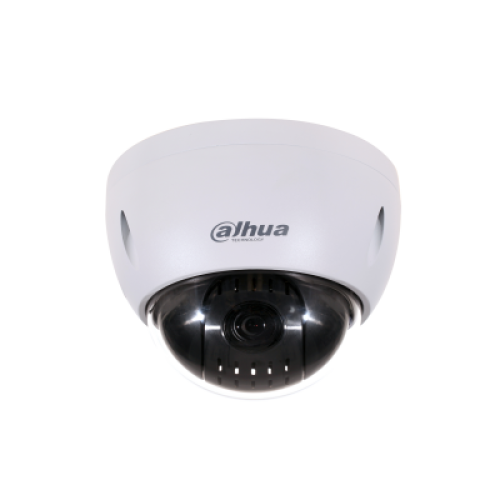

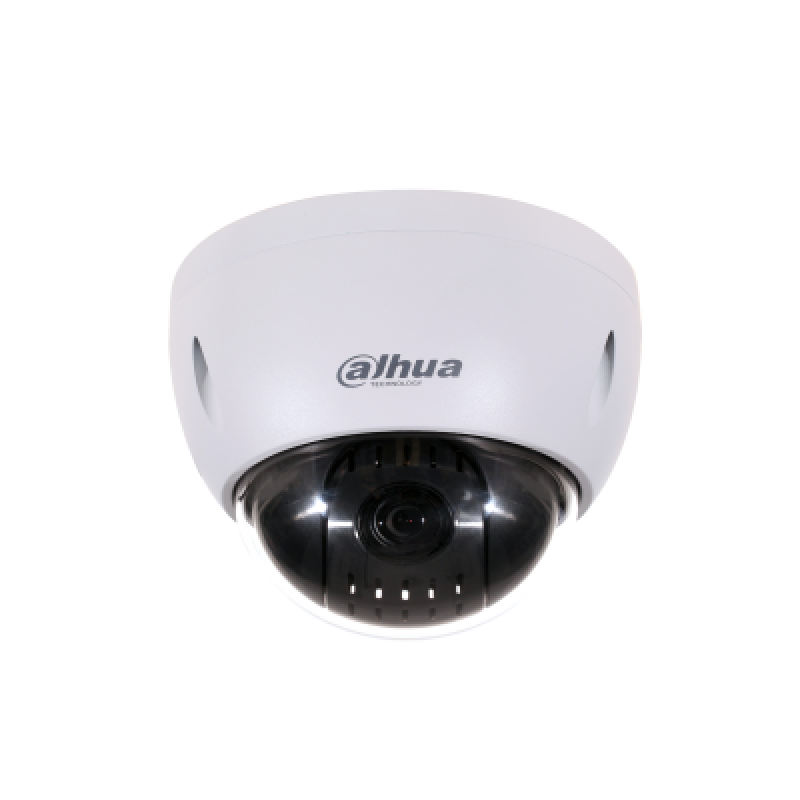

• 1/2.8" 2Megapixel STARVIS™ CMOS
• Powerful 15x optical zoom
• Starlight technology
• 120 dB true WDR, 3D DNR
• Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
• IK10
• IP66
| Dosyalar |
| SD42215-HC-LA-DataSheet |
Download |
| Camera |
| Image Sensor |
1/2,8" STARVIS™ CMOS |
| RAM/ROM |
256MB/16MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/3 sn–1/100000 sn |
| Minimum Illumination |
Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6 |
| Thermal |
| Max. Resolution |
1920 (Y) x 1080 (D) |
| Pixel pitch |
2MP |
| Diaphragm |
F1.6–F2.8 |
| Lens |
| Focal Length |
5 mm–75 mm |
| Iris Control |
Otomatik/Manuel |
| Field of View |
H: 58,9–5,1; V: 34.1–2.9; D: 66,6–5,8 |
| Focus Control |
Automatic/Semi-Automatic/Manual |
| Optical Zoom |
15x |
| Close Focus Distance |
1 m–1,5 m (3,28 ft–4,92 ft) |
| PTZ |
| Pan/Tilt Range |
Pan: 0° ~ 360° infinite; Tilt: -2° ~ 90°, auto flip 180° |
| Manual Control Speed |
Horizontal Pan: 300°/s; Tilt: 200°/s |
| Preset Speed |
Horizontal Pan: 300°/s; Tilt: 200°/s |
| Preset |
300 |
| Power-off Memory |
Support |
| Tour |
8 (up to 32 presets per tour) |
| Idle Motion |
Preset/Tour/Pattern/Scan |
| Pattern |
5 |
| Scan |
5 |
| Protocol |
DH-SD
Pelco-P/D (auto recognition) |
| Speed Adjustment |
Support |
| Video |
| Frame Rate |
1080P (25/30 fps); 720P (25/30/50/60 fps) |
| Resolution |
1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480) |
| Day/Night |
Support |
| BLC Mode |
Support |
| HLC |
Support |
| White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control |
Otomatik/Manuel |
| WDR |
120 dB |
| Noise Reduction |
2D/3D |
| Region of Interest |
Support |
| Motion Detection |
Support |
| Digital Zoom |
16x |
| Privacy Masking |
Up to 24 spaces |
| Audio |
| Compression |
G.711a; G.711Mu |
| Port |
| Alarm Input |
2 |
| Audio Input |
1 |
| Alarm Output |
1 |
| Certifications |
| Certifications |
CE: EN55032/EN55024/EN50130-4
FCC: Bölüm 15 alt bölüm B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| General |
| Power Source |
DC 12V/5A ± %10 |
| Dimension |
155 mm × Φ170 mm (6,10" × Φ6,69") |
| Operating Temperature |
-30°C ila +60°C (-22°F ila +140°F) |
| Operating Humidity |
≤ %95 |
| Net Weight |
1,8 kg (3,97 lb) |
| Power consumption |
Base: 9.6W
Max: 12W (module zoom, PTZ operations) |
| Gross Weight |
3,3 kg (7,28 lb) |
| Interface |
| RS485 |
1 (baud rate range: 1200 bps–9600 bps) |
| Environmental |
| Ingress Protection |
IP66; IK10; TVS 6000V lightning protection; surge protection |
