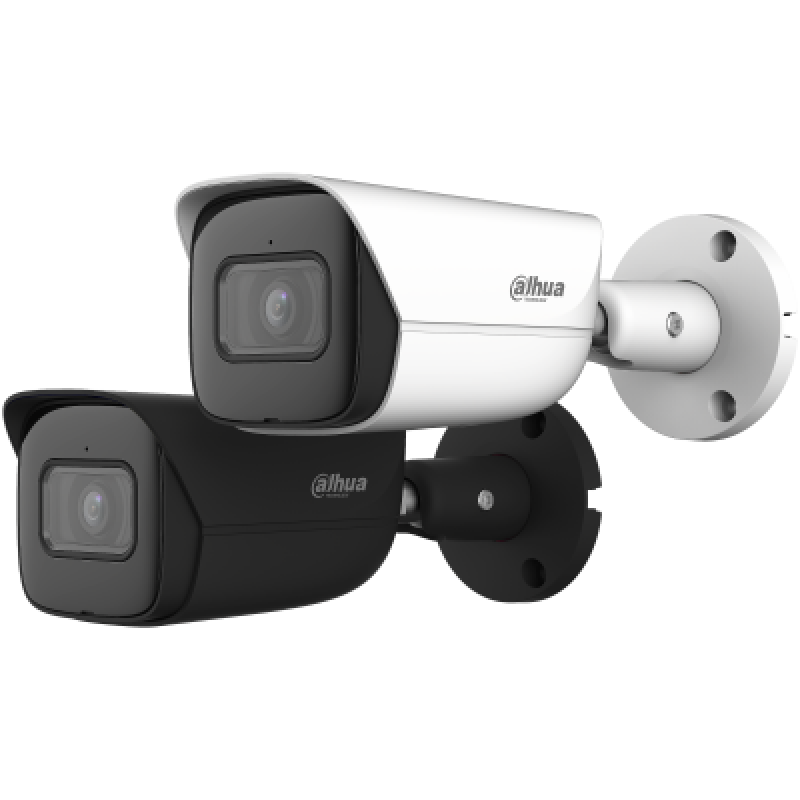

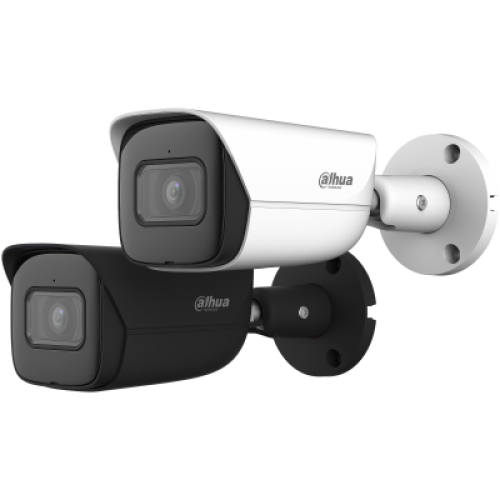

• 5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
• Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, max. IR distance: 50 m.
• ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
• 12 VDC/PoE power supply, easy for installation.
• IP67 protection.
• SMD 4.0, AI SSA.
| Dosyalar |
| IPC-HFW3541E-AS-0360B-S2-DataSheet |
Download |
| Camera |
| Image Sensor |
1/2.7" CMOS |
| Effective Pixels |
2960 (H) × 1668 (V) |
| RAM/ROM |
512MB/128MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination |
0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on) |
| S/N Ratio |
56 dB |
| IR Distance |
50m |
| IR On/Off Control |
Auto/ Manual |
| IR LEDs |
1 |
| Lens |
| Lens Type |
Fixed |
| Mount Type |
M12 |
| Focal Length |
2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture |
F1.4 |
| Angle of View |
2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°
3.6 mm: Horizontal: 92°; Vertical:45°; Diagonal: 110°
6 mm: Horizontal: 57°; Vertical: 30°; Diagonal: 65° |
| Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (18.37 ft)
6 mm: 3.3 m (10.83 ft) |
| PTZ |
| Pan/Tilt Range |
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Video |
| Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec |
Smart H.265+
Smart H.264+ |
| Streaming Capability |
3 streams |
| Frame Rate |
Main stream: 2880 × 1620 @ (1–20) fps /
2960 × 1668 @ (1–20) fps /
2688 × 1520 @ (1–25/30 fps)
Sub stream 1: 704 × 576 @ (1–25 fps)/
704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Resolution |
5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC Mode |
Yes |
| HLC |
Yes |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Auto |
| WDR |
120 dB |
| Noise Reduction |
3D DNR |
| Region of Interest |
4 areas |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Image Rotation |
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Mirror |
Off / On |
| Privacy Masking |
4 areas |
| Smart Illumination |
Yes |
| Network |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Max. User Access |
20 |
| Edge Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Web Viewer |
IE: IE11
Chrome
Firefox |
| Management Software |
Smart PSS; DSS; DMSS |
| Smart Phone |
IOS; Android |
| Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certifications |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Electrical |
| Power Supply |
12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 3.1 W (12 VDC); 3.7 W (PoE)
Max. (WDR+IR intensity+Intelligence on): 5.3 W (12 VDC); 6.5 W (PoE) |
| Interface |
| Video Interface |
Input: 1 channel (RCA port) (Only - AS supports) Output: 1 channel (RCA port) (Only - AS supports) |
| Alarm |
1 channel in: 5 mA 3–5 VDC (Only - AS supports) 1 channel out: 300 mA 12 VDC (Only - AS supports) |
| Environmental |
| Operating Conditions |
–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH |
| Strorage Conditions |
–40 °C to +60 °C (–40 °F to 140 °F) |
| Ingress Protection |
IP67 |
| Construction |
| Casing |
Metal |
| Dimensions |
192.7 mm × 70.5 mm × 66.4 mm
(7.59" × 2.77" × 2.61") (L × W × H) |
| Net Weight |
590 g (1.30 lb) |
| Gross Weight |
780 g (1.72 lb) |
