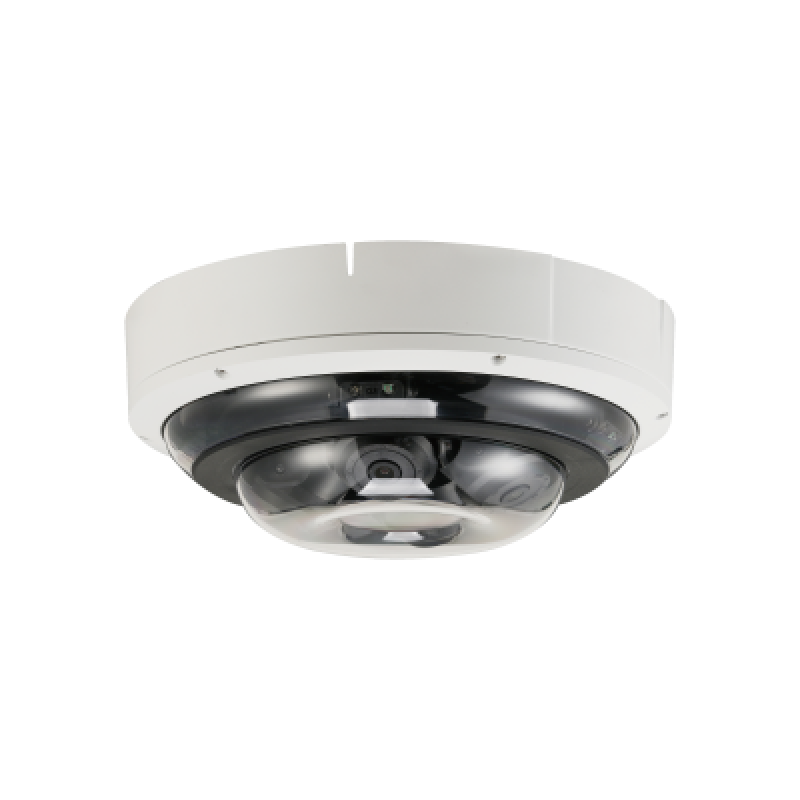

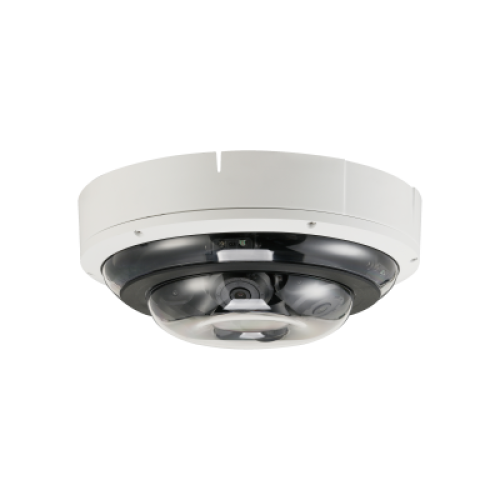

• Four 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
• H.265&H.264 dual-stream encoding
• 25/30fps@2M(1920×1080)
• Smart Detection supported
• WDR(140dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.7mm~12mm motorized lens
• Max. IR LEDs Length 30m
• Micro SD memory, IP67, IK10, PoE+
| Dosyalar |
| IPC-PDBW5831-B360-DataSheet |
Download |
| Camera |
| Image Sensor |
4 x 1/2.8” 2Megapixel progressive scan CMOS |
| Effective Pixels |
1920(Y)x1080(D) |
| RAM/ROM |
1024MB/128MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/100000s |
| Minimum Illumination |
0.005Lux/F1.8(Color,1/3s,30IRE)
0.06Lux/1.8(Color,1/30s,30IRE)
0Lux/F1.8(IR on) |
| S/N Ratio |
50dB |
| IR Distance |
30m |
| IR On/Off Control |
Auto/ Manual |
| IR LEDs |
8 |
| Lens |
| Lens Type |
Motorized |
| Mount Type |
Board-in |
| Focal Length |
2,7~12mm |
| Max. Aperture |
F1.8 |
| Angle of View |
Y: 105° ~44°, D:54° ~25° |
| Close Focus Distance |
0,2 m(0,66 ft) |
| Video |
| Compression |
H.265/H.264/H.264B/H.264H/MJPEG |
| Smart Codec |
H.265+/H.264+ |
| Streaming Capability |
2 Streams |
| Frame Rate |
Main Stream: 1080P(1~25/30fps)
Sub Stream: D1(1~25/30fps) |
| Resolution |
1080P(1920×1080)/1,3M(1280x960)/ 720P(1280x720)/D1(704×576/704x480)/ CIF(352×288/352×240) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32~8192Kbps
H.265: 12~6144Kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC Mode |
BLC / HLC / WDR(140dB ) |
| White Balance |
Auto/Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Region of Interest |
Off / On (4 Zone) |
| Motion Detection |
Off / On (4 Zone, Rectangle) |
| Smart IR |
No |
| Digital Zoom |
16x |
| Mirror |
Off/On |
| Privacy Masking |
Closed / Open (4 Fields, Rectangular) |
| Audio |
| Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
| Network |
| Ethernet |
RJ-45 (100/1000Base-T) |
| Protocol |
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP |
| Interoperability |
ONVIF Profili S&G, API |
| Max. User Access |
10 Users/20 Users |
| Edge Storage |
INSIDE
Local computer for instant recording
Micro SD card 256GB |
| Web Viewer |
IE, Chrome, Firefox, Safari |
| Management Software |
Smart PSS, DSS, DMSS |
| Smart Phone |
IOS, Android |
| Certifications |
| Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Bölüm 15 Alt Bölüm B |
| Electrical |
| Power Supply |
AC24V, PoE+(802.3at)(Class 4) |
| Power Consumption |
AC 24V: 9.9W 31.2W(IR on)
PoE: 10.6W 23.8W(IR on) |
| Interface |
| Video Interface |
1/1 channel Input/Output |
| RS485 |
1 |
| Alarm |
1 channel Input: 5mA 5VDC
1 channel Output: 300mA 12V |
| Environmental |
| Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% relative humidity |
| Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% relative humidity |
| Ingress Protection |
IP67; IK10 |
| Construction |
| Casing |
Metal |
| Dimensions |
286,1 mm × 111,3 mm |
| Net Weight |
2,7 kg (5,95 lb) |
| Gross Weight |
3,6 kg (7,94 lb) |
