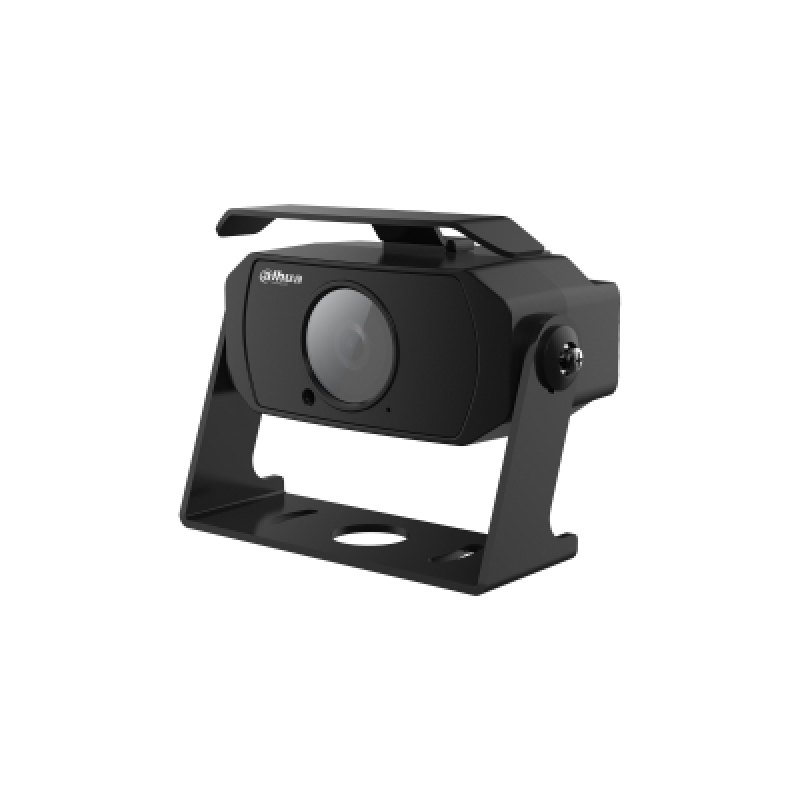

• 1/2.7” 2Megapixel progressive scan CMOS
• 25/30fps@1080P(1920×1080)
• H.265&H.264 dual-stream encoding
• 2.8/6 mm fixed lens
• Built-in IR light with illumination distance up to 30 m
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC
• Supports watermark
• Supports 128G micro SD card12V DC/POE power supply
| Dosyalar |
| IPC-HMW3230-M-DataSheet |
Download |
| Camera |
| Image Sensor |
1/2,7 inç CMOS |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/3 s–1/100000 s (manual/auto) |
| Minimum Illumination |
0.01 Lux @ F2.0 (Color)
0.001 Lux @ F2.0 (B/W)
0 Lux @ F2.0 (IR on) |
| S/N Ratio |
>65 dB |
| IR Distance |
30 m |
| IR LEDs |
1 |
| Thermal |
| Diaphragm |
F2.0 |
| Lens |
| Lens Type |
Sabit odaklı |
| Focal Length |
2,8 / 6 mm |
| Field of View |
2,8 mm: Y: 115°, D: 60 °, D: 130 °
6 mm: Y: 55°, D: 31°, D: 62° |
| Function |
| User Management |
Unicast: 10 Users
Multicast: 20 Users |
| Smart Event |
| IVS |
Tripwire, Intrusion |
| Audio and Video |
| Access Channel |
ONVIF Profili S&G, API |
| Intelligence |
| Event Trigger |
Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly |
| Video |
| Compression |
H264;H264B;H264H;H265;MJPEG |
| Frame Rate |
50Hz:
Main Stream (1920×1080@25fps), Sub Stream (704×576@25fps), Third Stream (1920×1080@14fps)
60Hz:
Main Stream (1920×1080@30fps), Sub Stream (704×576@30fps), Third Stream (1920×1080@9fps) |
| Resolution |
1080P (1920×1080)/1,3M (1280×960)
720P (1280×720)/D1 (704×576/704×480)/VGA (640×480)/CIF (352×288/352×240) |
| Bit Rate |
CBR; VBR |
| BLC Mode |
Yes, region selectable |
| HLC |
Yes |
| White Balance |
Manual/Auto |
| Gain Control |
Manual/Auto |
| WDR |
Dijital WDR |
| Noise Reduction |
3D NR |
| Audio |
| Compression |
G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729 |
| Built-in MIC |
Built-in Mic |
| Network |
| Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;
FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S
NMP;TLS |
| Streaming Method |
Unicast / Multicast |
| Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 128GB |
| Web Viewer |
IE, Chrome, Firefox, Safari |
| Port |
| Alarm Event |
Motion Detection, Disk Error, Illegal Access, IVS, Voltage Detection, Disk Full, Video Tamper, Audio Detection, Scene Changing |
| Network Port |
RJ-45 port (10/100 Base-T)/4-pin M12 aviation connector |
| Certifications |
| Certifications |
CE LVD/CE EMC/FCC/EN50155/E işareti/R118 |
| General |
| Dimension |
107.0mm × 82.0mm × 68mm (4.21'' × 3.235'' × 2.68'') (with bracket) |
| Weight |
Net Weight: 395 g (0.87 lb)
Gross Weight: 550 g (1.21 lb) |
| Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
| Installation |
Bracket Installation |
| Operating Humidity |
≤95% |
| Electrical |
| Power Supply |
12V DC/ POE (802.3af) |
| Power Consumption |
Basic power consumption: 1.3W
Max power consumption: 2.4W (IR on) |
| Environmental |
| Ingress Protection |
IP67 |
| Construction |
| Casing |
Metal |
