• Active deterrence with red blue light, siren and alarm out interface.
• Max. 30 fps@1080p.
• 130 dB true WDR, 3D NR.
• Smart Dual Light.
• 40 m illumination distance.
• Super Adapt, Built-in MIC.
• 3.6 mm fixed lens (2.8 mm optional).
• CVI/CVBS/AHD/TVI switchable.
• IP67, 12 VDC.
| Dosyalar |

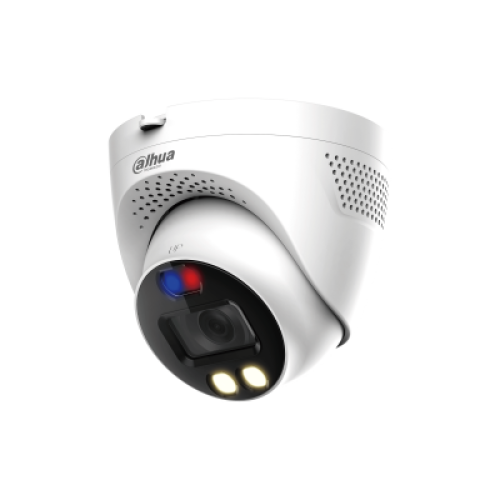

| HAC-ME1239TQ-A-PV-0280B-S2-DataSheet |
Download |
| Camera |
| Image Sensor |
2 MP CMOS |
| Effective Pixels |
1920(H) x1080(V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
PAL: 1/25 sn–1/100000 sn
NTSC: 1/30 sn–1/100000 sn |
| Minimum Illumination |
0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
| Illumination Distance |
IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft) |
| S/N Ratio |
>65 dB |
| IR Distance |
20 m (65,61 ft) |
| IR On/Off Control |
Auto |
| IR LEDs |
1 |
| Lens |
| Lens Type |
Fixed lens / Fixed iris |
| Focal Length |
2,8 mm; 3,6 mm |
| Max. Aperture |
F1.6 |
| Angle of View |
2,8 mm: Y: 107°; Dikey: 56°; D: 127°
3,6 mm: Y: 86°; Dikey: 46°; D: 101° |
| Close Focus Distance |
2,8 mm: 0,7 m (2,3 ft)
3,6 mm: 1,1 m (3,6 ft) |
| Active Deterrence |
| Red/Blue Light Warning |
Flash: 5 sec – 60 sec; frequency: high/medium/low |
| Sound Warning |
Sound1: alarm
Ses2: Parking is prohibited here
Voice3: Entry to private land is prohibited.
Audio4: Keep warning area closed
Audio5: Welcome
Volume: high/medium/low;
duration: 5 sec – 60 sec; 110dB |
| Audio and Video |
| Video Output |
1-channel BNC high-definition video output / CVBS video output (Can be switched) |
| Video |
| Frame Rate |
CVI:
PAL: 1080p@25 fps; 720p@25 fps;
NTSC: 1080p@30 fps; 720p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps
CVBS:
PAL: 960H;
NTSC: 960H |
| Resolution |
1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Lighting Mode |
Smart IR |
| Day/Night |
Otomatik(ICR) |
| BLC Mode |
BLC/WDR/HLC |
| White Balance |
Auto |
| Gain Control |
Auto |
| WDR |
130 dB |
| Noise Reduction |
3D NR |
| Mirror |
Yes |
| Privacy Masking |
Off/On (8 fields, rectangle) |
| Port |
| Audio Output |
Single channel internal microphone (-A) |
| Certifications |
| Certifications |
CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+ A11:2017)
FCC (CFR 47 FCC Bölüm 15 alt bölümB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| General |
| Dimension |
Φ109,9 mm × 100,9 mm (Φ4,33" × 3,97") |
| Operating Humidity |
<%95 (RH), |
| Net Weight |
0,32 kg (0,71 lb) |
| Electrical |
| Power Supply |
12 VDC ± %30 |
| Power Consumption |
Max 3,3W (12V DC, IR on) |
| Environmental |
| Ingress Protection |
IP67 |
| Construction |
| Casing |
Metal inner core + plastic cover + plastic foot |
| Gross Weight |
0,50 kg (1,10 lb) |
